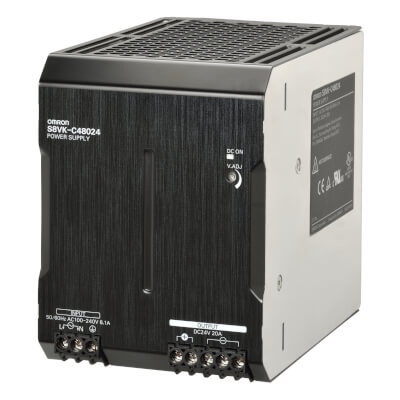

OMRON S8VK-C48024 SMPS

    ₹ 9,704.00 ₹ 0.00 0.0 INR

    ₹ 9,704.00

    This combination does not exist.

    Add to Cart

    Switch Mode Power Supply



    Cost-effective Single Phase Power Supply Universal input and Safety standards for worldwide applications Space-saving Compact Design




    • Universal input for worldwide applications: 100 to 240 VAC (85 to 264 VAC)

    • DC input can be available: 90 to 350 VDC • Operation temperature range: –25 to 60 °C

    • Compact Dimension for small space

    • Flexible installation by special mounting brackets

    • Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1 EN50178, EN60950-1

    • EMS: Conform to EN61204-3 EMI: EN55011 Class A



    Manufacturer Part Number
    S8VK-C48024
    Manufacturer
    Omron
    Product Series
    S8VK-C
    Family Series
    Switch Mode Power Supply
    Input Range Voltage (AC)
    Single phase 100 to 240 VAC 90 to 350 VDC
    Input Current
    2.4 A
    Output current
    20 A
    Output Voltage (VDC)
    24 V
    Overload protection
    105% to 160% of rated load current
    Overvoltage protection
    Yes
    IP Rating
    IP20  by EN / IEC60529
    Power ratings
    4800 W
    Ambient operating temperature
    –25 to 60°C (Refer to Engineering Data)
    Mounting
    Panel
    Output indicatior
    Yes (color: green), lighting from 80% to 90% or more of rated voltage
    Weight
    1,550 g
