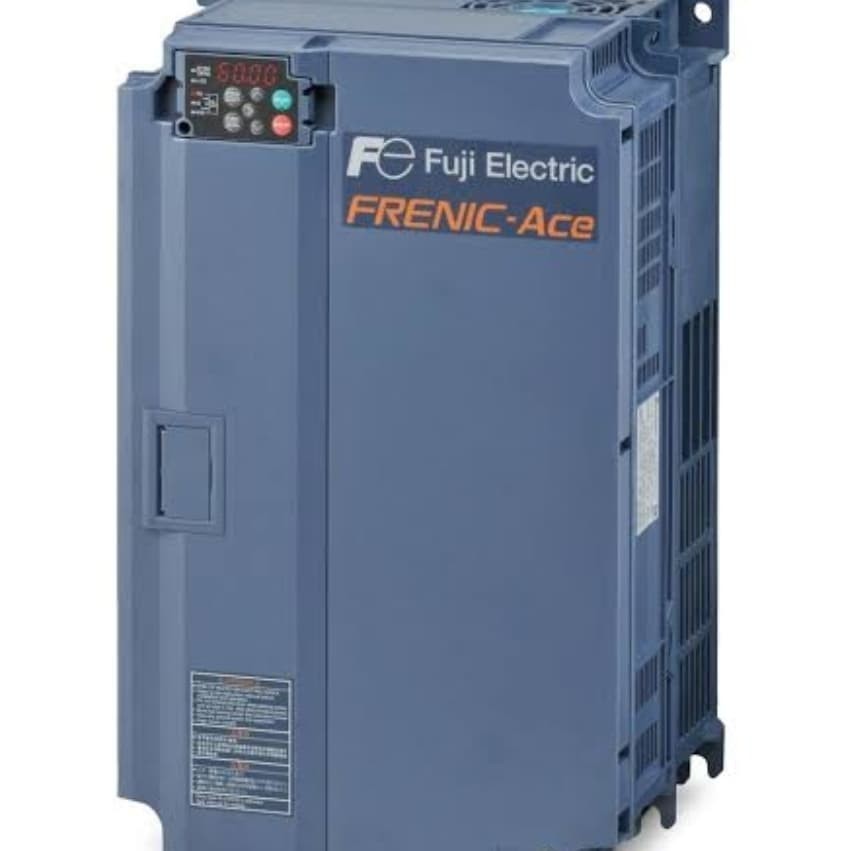

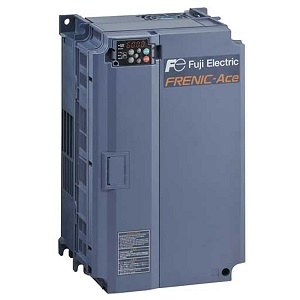

FRN0168E2S-4GB

http://localhost:8069/web/image/product.template/126/image_1920?unique=f9e78f8

₹ 0.00 0.0 INR ₹ 0.00

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Drives, Ace Series



AC Drive 1.0HP, 240V, 5.0A, CT, OP



  • Sensorless dynamic torque vector control

  • Motor vector control with PG (with optional card)

  • Synchronous motor with sensorless vector control

  • 2‑channel on‑board RS485 communications port

  • Standard CANopen compatibility

  • Removable keypad device

Manufacturer Part Number

FRN0168E2S-4GB

Manufacturer

Fuji

Product Series

Ace

Family Series

Fuji Drives, Ace Series

Input Range Voltage (AC)

380 to 480 Volts AC

Input Phase

3

HP (Constant Torque Rating)

75

Current (Constant Torque Rating)

112

HP (Variable Torque Rating)

100

Current (Variable Torque Rating)

150

Braking Type

DC Injection;Dynamic Braking Transistor Included

Closed Loop

Optional

AC Line Regenerative

No

Operator Controls

Keypad Included

IP Rating

IP20

Max Frequency

500

Motor Control-Max Level

Open Loop Vector (Sensorless Vector)

Mounting

Panel

Package

ACE0139-4/0168-4/0203-4

Comments

Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports.

Height

26.57 Inches

Width

14.3 Inches

Depth

10.87 Inches

Net Weight

0 lbs

Gross Weight

0 lbs
