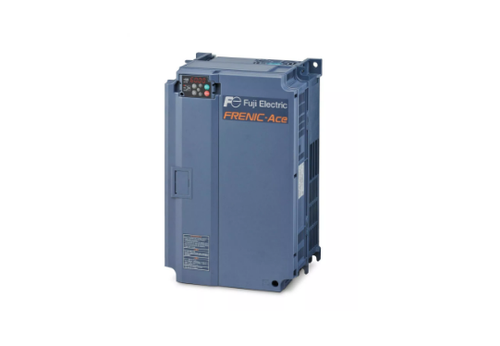

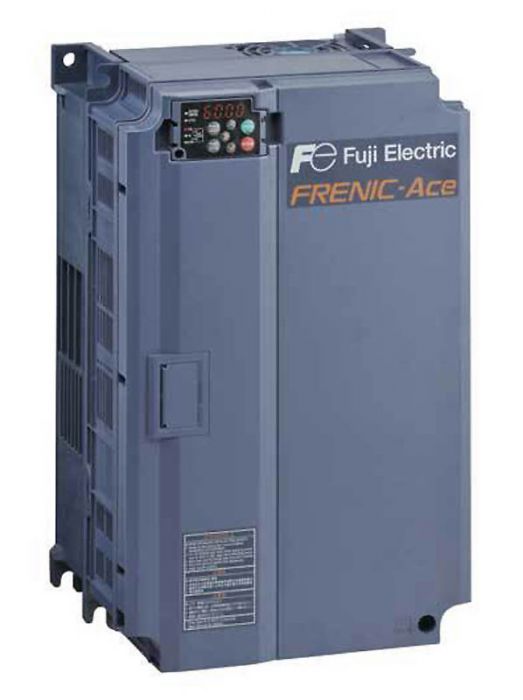

Drives, Ace Series
AC Drive 1.0HP, 240V, 5.0A, CT, OP
- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2‑channel on‑board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
|
Manufacturer Part Number |
FRN0085E2S-4GB |
|
Manufacturer |
Fuji |
|
Product Series |
Ace |
|
Family Series |
Fuji Drives, Ace Series |
|
Input Range Voltage (AC) |
380 to 480 Volts AC |
|
Input Phase |
3 |
|
HP (Constant Torque Rating) |
1 |
|
Current (Constant Torque Rating) |
5 |
|
Braking Type |
DC Injection;Dynamic Braking Transistor Included |
|
Closed Loop |
Optional |
|
AC Line Regenerative |
No |
|
Operator Controls |
Keypad Included |
|
IP Rating |
IP20 |
|
Max Frequency |
500 |
|
Motor Control-Max Level |
Open Loop Vector (Sensorless Vector) |
|
Mounting |
Panel |
|
Package |
ACE0005-7 |
|
Comments |
Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports. |
|
Height |
21.65 Inches |
|
Width |
12.9 Inches |
|
Depth |
10.28 Inches |
|
Net Weight |
0 lbs |
|
Gross Weight |
0 lbs |
