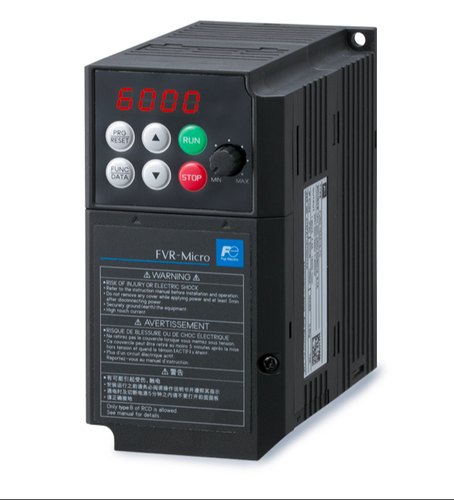

AC Drive 2.2 K. W, 200V, 10A
Frenic Micro (AS1-Series) is compact and space-saving. It has simple design and once installed, enjoy easier operation. Frenic Micro is simple, small and smart and general-purpose. It can be used for noodle-making machine, mixer, conveyor transport, fans and pumps and woodworking machinery.
Built-in potentiometer for frequency setting
Built in Transistor
With Traverse function
Built-in RS-485 communication (RJ-45 connector)
Auto energy saving function
High starting torque: 200% for 0.5s, 150% or above
Records 4 alarm
Alarm auto reset function
|
Manufacturer: |
Fuji Electric |
|
Series: |
FVR-Micro |
|
Model: |
FVR2.2AS1S-7E |
|
Application: |
pumps / fans / general purpose |
|
Capacity, kW: |
2.2 |
|
Current, А: |
10 |
|
Main power supply, V: |
200 |
|
Phase: |
1 |
|
Output frequency, Hz: |
0,1-400 |
|
Enclosure: |
IP20 |
|
Overload capacity, % per 1 min.: |
150 |
|
EMC filter: |
- |
|
Braking unit: |
+ |
|
Analog input: |
2 |
|
Digital input: |
6 |
|
Starting torque: |
+ |
|
PID: |
PID - control |
|
Sensorless vector control: |
+ |
|
Operation temperature, °С: |
-10.....+50 |
|
Dimensions (W x H x D), mm: |
108x128x146 |
|
Weight, kg: |
1 |
