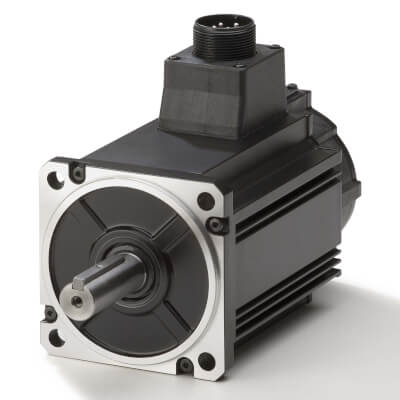

G5 series AC servo motor, 4 kW, 400 VAC, 2000 rpm, 19.1 Nm, Absolute encoder, with brake
Servo control method |
Analog, EtherCAT, MECHATROLINK II, Pulse train |
Drive supply voltage |
400 V three phase |
Rated output |
4 kW |
Rated speed |
2000 Rpm |
Rated torque |
19.1 Nm |
Peak torque |
57.3 Nm |
Encoder type |
Absolute with battery |
Encoder resolution |
17 Bit |
Flange size square (LC) |
176 mm |
Shaft diameter |
35 mm |
Weight |
21800 g |
