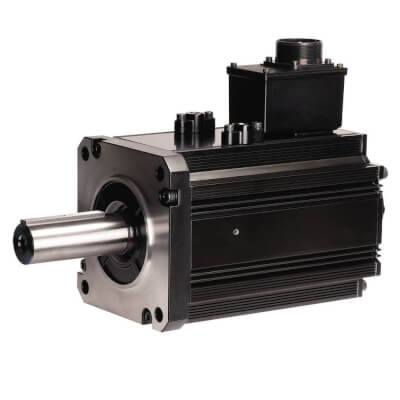

G5 series AC servo motor, 7.5 kW, 400 VAC, 1500 rpm, 47.8 Nm, Absolute encoder, with brake, with oil seal
Servo control method |
Analog, EtherCAT, Pulse train |
Drive supply voltage |
400 V three phase |
Rated output |
7.5 Kw |
Rated speed |
1500 Rpm |
Rated torque |
47.8 Nm |
Peak torque |
119 Nm |
Encoder type |
Absolute with battery |
Encoder resolution |
17 Bit |
Flange size square (LC) |
176 mm |
Shaft diameter |
42 mm |
Weight |
40400 g |
