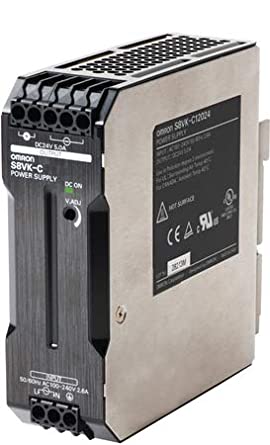

Switch Mode Power Supply
Cost-effective Single Phase Power Supply Universal input and Safety standards for worldwide applications Space-saving Compact Design
• Universal input for worldwide applications: 100 to 240 VAC (85 to 264 VAC)
• DC input can be available: 90 to 350 VDC • Operation temperature range: –25 to 60 °C
• Compact Dimension for small space
• Flexible installation by special mounting brackets
• Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1 EN50178, EN60950-1
• EMS: Conform to EN61204-3 EMI: EN55011 Class A
Manufacturer Part Number |
S8VK-C06024 |
Manufacturer |
Omron |
Product Series |
S8VK-C |
Family Series |
Switch Mode Power Supply |
Input Range Voltage (AC) |
Single phase 100 to 240 VAC 90 to 350 VDC |
Input Current |
0.7 A |
Output current |
2.5 A |
Output Voltage (VDC) |
24 V |
Overload protection |
105% to 160% of rated load current |
Overvoltage protection |
Yes |
IP Rating |
IP20 by EN / IEC60529 |
Power ratings |
60 W |
Ambient operating temperature |
–25 to 60°C (Refer to Engineering Data) |
Mounting |
Panel |
Output indicatior |
Yes (color: green), lighting from 80% to 90% or more of rated voltage |
Weight |
260 g |
