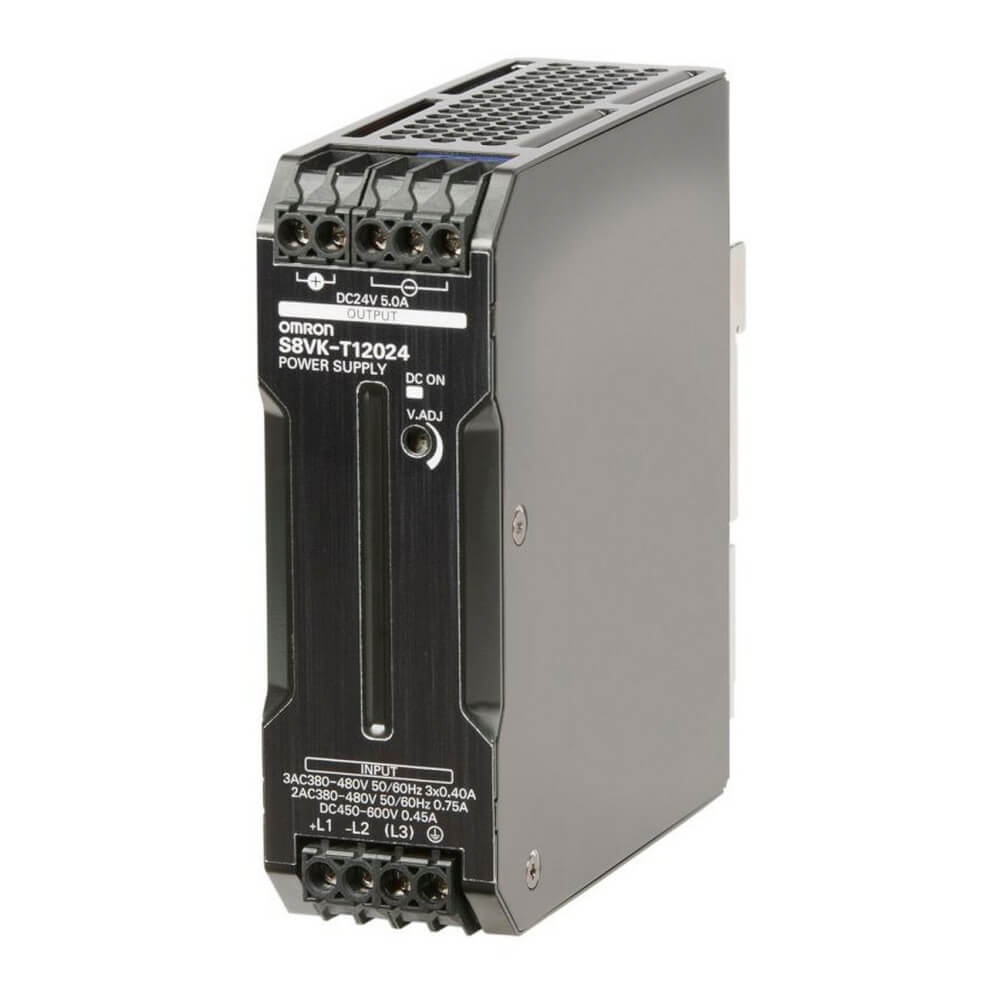

Switch Mode Power Supply
Cost-effective Single Phase Power Supply Universal input and Safety standards for worldwide applications Space-saving Compact Design
|
Type |
Book type |
|
Mounting method |
DIN rail |
|
Phase |
Three |
|
Power output |
120 W |
|
Efficiency |
89 % |
|
Output voltage |
24 V |
|
Rated output current |
5 A |
|
Power boost ratio |
120 % |
|
Temperature range |
-40-70 °C |
|
Terminal |
Screw |
|
Rated supply voltage at AC 50 Hz |
380-480 V |
|
Allowable supply voltage AC |
320-576 V |
|
Allowable supply voltage DC |
450-810 V |
|
Width |
40 mm |
|
Height |
125 mm |
|
Depth |
113 mm |
